Ilersac W

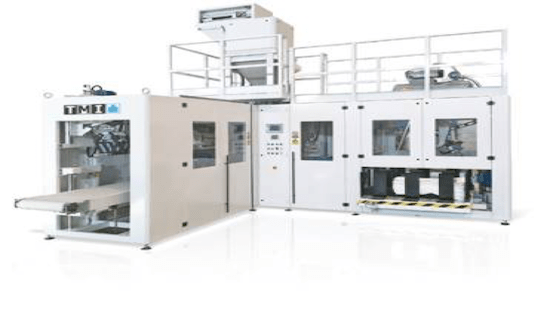

The Ilersac W is a high speed open mouth bagging system.

  • The ILERSAC W is designed to handle bags at high speed with maximum reliability by avoiding lineal transitions at vacuum systems. All handling process is done through pincers that take the bag for all handling process providing maximum control.
  • Its versatile design allows working both with pillow and side gusseted bags.
  • Complete external frame with access doors makes it easier for all assembly jobs since all parts are attached to the frame allowing better mechanical and electrically integrated.
  • Full automation grade for high speed rates, up to 1200 bags/hour, depending on product’ characteristics and formats to handle.
  • Flexible and fast changeover times.
  • High bagging autonomy, balanced with working speed.
  • Best Access for cleaning and maintenance tasks.
  • Full bagging line enclosure with hardly feet at floor.
  • Wear-less design, capable to handle 50kg bags in many cases.
  • Bags overlap during palletizing process, preventing them to overfly the limits of the pallet.
  • Versatility: Adapted to various widths of pallet, thanks to motorized independent side dams.
  • Its compact main body allows it to be transported in standard sized containers.
  • Simple and user friendly HMI.
