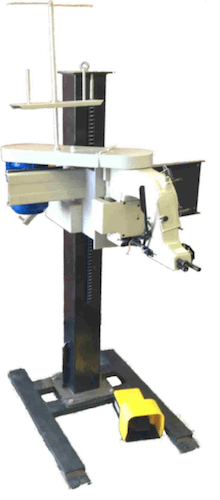

The Innosew M is a bag sewing system with foot pedal operation.
The Innosew M is a manual sewing station, where the operator feeds the bag into the sewing machine and presses the foot pedal to start the machine. The operator pushes the bag back to allow the knives to cut the thread.
SZ-3 Height adjustable pedestal
Variable Frequency drive on the sewing head motor for easy synchronisation to the conveyor
10 amp single phase supply
.75 kw 3 phase motor
GK35-2C sewing head
Foot pedal start / stop
All cables for motors controlled by inverters have a braided stainless steel EMC sheath
3 kg thread stand
All electrical systems made from high quality locally obtainable components
Designed & built in Australia to meet Australian standards.
