Innosew A

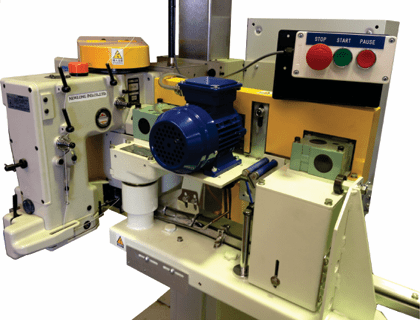

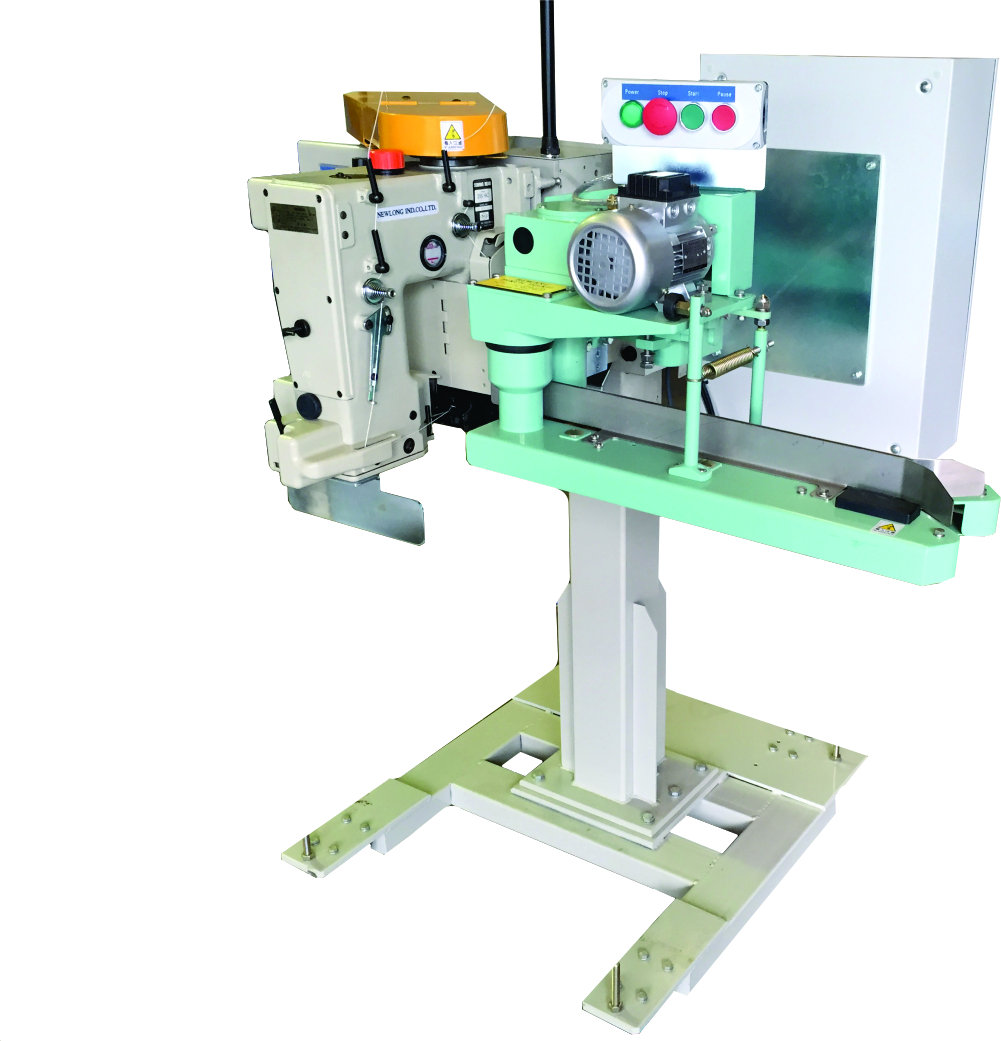

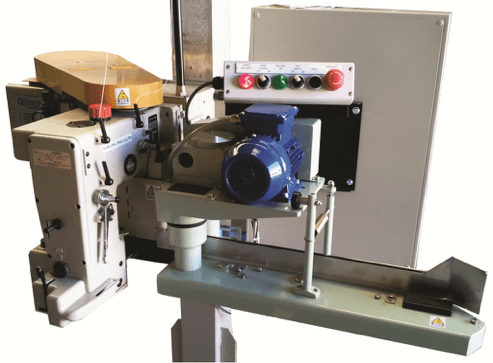

The Innosew A is a bag sewing & infeed system with automatic start/stop & thread cutting.
Description
Automatic sewing Station for above bagging conveyor allowing for bags to be stitched with auto stop, start and thread trim.
Features
- Innosew A Automatic Sewing Station
- SZ-3 Height adjustable pedestal
- Variable Frequency drive on the sewing head motor for easy synchronisation to the conveyor
- Variable Frequency drive on the infeed motor for easy synchronisation to the conveyor and sewing head
- Programmable logic controller

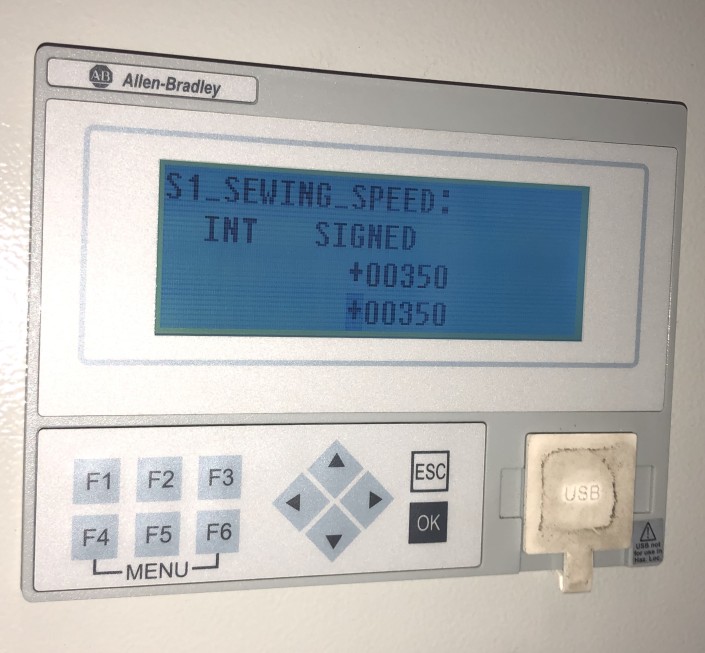

- HMI screen for easy adjustment of speeds & timers
- 10 amp single phase supply
- .75 kw 3 phase motor
- Photo cells to start and stop the sewing head
- Newlong DS-9C sewing head
- Automatic thread cutter on the sewing head
- Solenoid valve for cutter
- QS- 4900 power bag infeed
- All electrical systems made from high quality locally obtainable components
- All cables for motors controlled by inverters have a braided stainless steel EMC sheath
- Includes integration of all sewing system components to the safety system
- 75mm rebound rubber castors on the pedestal
- 3 kg thread stand
